Wire Materials: Stainless steel wire, copper wire, galvanized iron wire, polyamide fiber or F46 wire.
Process: Crochet weaving.

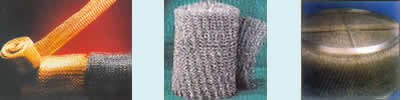

General Use: Filter mesh for gas and liquid serves well in filtering and deleting the particle mixture in foam, liquid and air, by way of distillating, absorbing, evaporating and filtering process, in petroleum, chemicals, metallurgy, machine, pharmaceuticals, automobile and environmental protection.
Specification List of Filter Mesh |
Model |
Specification |
Wire Diameter
mm |
Materials |
Area/Weight
m2/kg |
Technical Notes |
Standard |
40-100 Model
60-150 Model
140-40 Model
40-100 Model
40-100 Model
40-100 Model
40-100 Model |
0.1x0.4
0.1x0.4
0.1x0.4
0.27
0.1x0.4
0.25
0.2 |
stainless steel wire
stainless steel wire
stainless steel wire
gal. iron wire
copper wire
polyamide fiber
PVC fiber |
1/0.5
"
"
1/0.7
|
1, For 40-100 model: 40 holes in 100% width
2, Metal filter mesh can be processed into weaves type |
High Efficiency Model |
60-100 Model
80-100 Model
90-150 Model
200-400 Model
60-100 Model
80-100 Model |
¢.012
0.1x0.3
0.1x0.3
0.1x0.3
0.1x0.3
¢0.1-0.15
0.1-0.15 |
stainless steel wire
stainless steel wire
stainless steel wire
stainless steel wire
polyamide fiber
polyamide fiber |
1/0.6
1/0.6
1/0.6
1/0.6
|
- |
High Permeability Model |
30-100 Model
30-150 Model
70-400 Model |
0.1x0.4
0.1x0.4
0.1x0.4 |
stainless steel wire
stainless steel wire
stainless steel wire
stainless steel wire |
1/0.4
1/0.4
1/0.4 |
- |
|
