Stainless Steel Wire Mesh

Home   |   Products   |   Stainless Steel Wire Mesh

< >

Stainless Steel Wire Mesh

Material: High quality stainless steel wire
Feature: Excellent resistance against acid
Application: Guard against theft, insect-resistant

   More Details

Product Description

Our produces Stainless Steel Wire Mesh from first class stainless steel wire materials in SUS302, 304, 316, 304L, 316L.

General Use: Stainless steel wire mesh, with its excellent resistance against acid, alkali, heat and corrosion, find extensive uses in processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc.

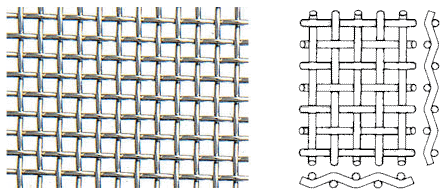

Plain Weaving

The Plain Wire Cloth Weaving is the most common wire cloth used and it is one of the simplest wire cloths. The plain wire cloths are not crimped before weaving, and each warp wire passes over / under the wires running through the cloth at 90 degree angles.

Warp and weft wire diameters are generally the same. Used for the majority of commercial applications and for filtration where a high flow rate is required.

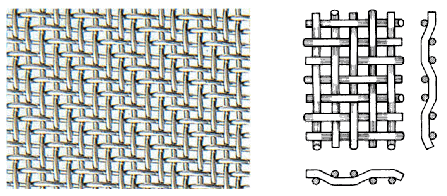

Twilled Weaving

Each weft wire passes alternately above and below every successive pair of warp wires and vice versa. This weave permits a heavier wire diameter to be used than would be possible in a plain weave with similar mesh count. This ability allows the application of this wire cloth for greater loads and finer filtration.

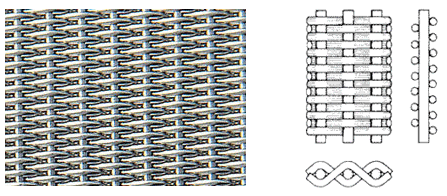

Plain Dutch Weaving

Woven as a plain weave but with the warp wires of greater diameter than the weft wires. The weft wires are woven tightly together producing a strong cloth whilst allowing a good flow rate.

Reverse Plain Dutch Weaving

This is the reverse of the Plain Hollander (Dutch) weave. The weft wires are of greater diameter than the warp wires, and consequently the warp mesh count is greater than the weft mesh count. This cloth is extremely strong, is easily cleaned and has a high flow rate.

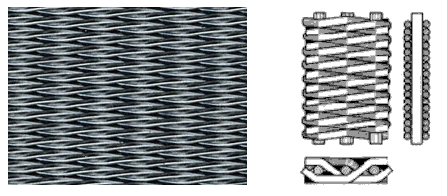

Twilled Dutch Weaving

Similar to Plain Dutch weaving, except that the weave is twilled, allowing a double layer of weft wires. This cloth is "light tight", has a very smooth surface, is strong, but has a restricted flow rate. There are no apertures in the true sense of the word as the filtrate follows a sinuous path through the depth of the wire cloth. Also referred to as Micromesh and is used for critical filtration applications often under high pressure.

Stainless Steel Weaving Wire Mesh Plain Weave
Mesh/inch Diameter Opening
mm inch mm inch
1 3 0.118 22.4 0.882
2 1.5 0.059 11.2 0.441
3 1.2 0.047 7.27 0.286
4 1 0.039 5.35 0.211
5 1 0.039 4.08 0.161
6 0.9 0.035 3.33 0.131
7 0.8 0.031 2.83 0.111
8 0.8 0.031 2.38 0.094
10 0.6 0.024 1.94 0.076
12 0.55 0.022 1.57 0.062
14 0.5 0.02 1.31 0.052
16 0.5 0.02 1.09 0.043
18 0.5 0.02 0.91 0.036
20 0.4 0.016 0.87 0.034
20 0.45 0.018 0.82 0.032
24 0.35 0.014 0.71 0.028
26 0.3 0.012 0.68 0.027
28 0.3 0.012 0.61 0.024
30 0.25 0.01 0.6 0.023
40 0.2 0.008 0.44 0.017
50 0.18 0.007 0.33 0.013
60 0.16 0.006 0.26 0.01
60 0.19 0.007 0.23 0.009
70 0.12 0.005 0.24 0.01
80 0.12 0.005 0.2 0.008
80 0.13 0.005 0.19 0.007
100 0.1 0.004 0.15 0.006
100 0.11 0.004 0.14 0.006
104 0.06 0.002 0.18 0.007
120 0.09 0.004 0.12 0.005
120 0.058 0.002 0.15 0.006
120 0.08 0.003 0.13 0.005
Stainless Steel Weaving Wire Mesh Plain Weave
Mesh/inch Diameter Opening
mm inch mm inch
140 0.07 0.003 0.11 0.004
145 0.045 0.002 0.13 0.005
150 0.06 0.002 0.11 0.004
150 0.05 0.002 0.12 0.005
160 0.05 0.002 0.11 0.004
160 0.04 0.002 0.12 0.005
160 0.035 0.001 0.12 0.005
165 0.05 0.002 0.1 0.004
180 0.05 0.002 0.09 0.004
180 0.04 0.002 0.1 0.004
200 0.053 0.002 0.07 0.003
200 0.05 0.002 0.08 0.003
200 0.04 0.002 0.09 0.003
220 0.05 0.002 0.07 0.003
230 0.035 0.001 0.08 0.003
230 0.03 0.001 0.08 0.003
250 0.04 0.002 0.06 0.002
250 0.035 0.001 0.07 0.003
250 0.03 0.001 0.07 0.003
270 0.035 0.001 0.06 0.002
270 0.03 0.001 0.06 0.003
280 0.035 0.001 0.06 0.002
300 0.03 0.001 0.05 0.002
325 0.025 0.001 0.05 0.002
325 0.028 0.001 0.05 0.002
325 0.03 0.001 0.05 0.002
350 0.022 0.001 0.05 0.002
370 0.022 0.001 0.05 0.002
400 0.022 0.001 0.04 0.002
420 0.022 0.001 0.04 0.002
450 0.02 0.001 0.04 0.001
Stainless Steel Weaving Wire Mesh Twill Weave
Mesh/inch Diameter Opening
mm inch mm inch
150 0.07 0.0028 0.0993 0.0039
165 0.058 0.0023 0.0959 0.0038
180 0.058 0.0023 0.0831 0.0033
200 0.058 0.0023 0.069 0.0027
225 0.05 0.002 0.0629 0.0025
235 0.045 0.0018 0.0631 0.0025
250 0.04 0.0016 0.0616 0.0024
270 0.04 0.0016 0.0541 0.0021
280 0.04 0.0016 0.0507 0.002
300 0.035 0.0014 0.0497 0.002
300 0.038 0.0015 0.0467 0.0018
300 0.04 0.0016 0.0447 0.0018
315 0.035 0.0014 0.0456 0.0018
325 0.035 0.0014 0.0432 0.0017
350 0.035 0.0014 0.0376 0.0015
350 0.03 0.0012 0.0426 0.0017
363 0.03 0.0012 0.04 0.0016
400 0.025 0.001 0.0385 0.0015
400 0.028 0.0011 0.0355 0.0014
400 0.03 0.0012 0.0335 0.0013
450 0.025 0.001 0.0314 0.0012
500 0.025 0.001 0.0258 0.001
510 0.025 0.001 0.0248 0.001
530 0.024 0.0009 0.0239 0.0009
635 0.02 0.0008 0.02 0.0008
795 0.015 0.00059 0.017 0.00067
