Aluminum Expanded Metal

< >

Aluminum Expanded Metal

Material: Aluminium plate
Feature: Corrosion resistance
Application: Protecting Mesh, Decorationand

   More Details

Product Description

Aluminum Expanded Metal Mesh is uniformly punched or stretched to form openings of diamond or rhombic shape. Because of it features, aluminum expanded metal mesh cladding is used popular around the world.

Material: aluminum
Thickness: 3mm
Strand width: 10mm
LWDXSWD: 80X40mm
Sheet size: 1.22MX2.44m
Surface finish: PVDF Coated,powder coated,or anodized

Various surface finish are available for aluminum expanded metal mesh cladding: PVDF coated, Powder Coated, Anodizing, Welded Framed

PRODUCT FEATURES

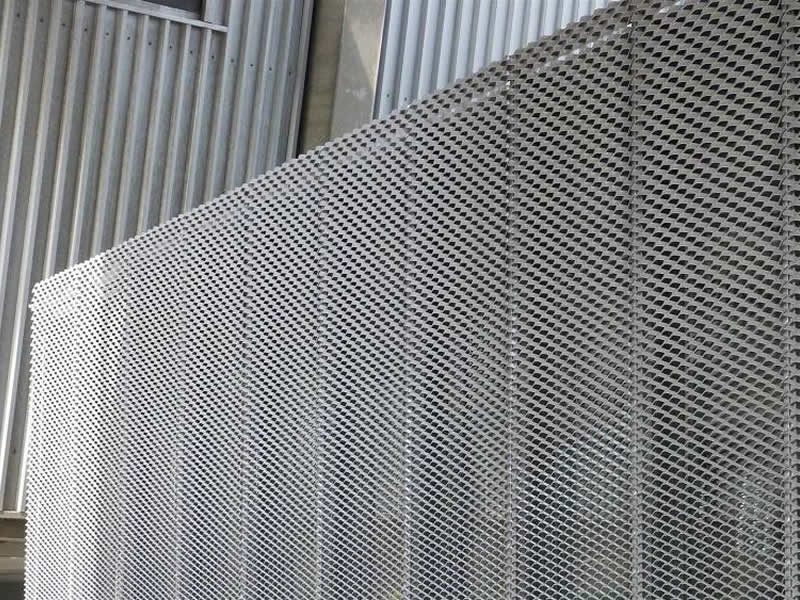

When the colorful Aluminum Expanded Metal Mesh is used for architectural cladding decoration for outdoor curtain wall, due to the unique sturdiness of its metal material, it can easily resist the adverse weather factors such as storms, and is easy to maintain. From the perspective of viewing, the metal mesh With the characteristics of silk, it gives people a visual enjoyment. When used as an indoor roof or partition wall, its unique permeability and luster give more space for aesthetic pleasure.

Features of Aluminum Expanded Metal Mesh Cladding: no rust, beautiful color & appearance, sturdy and durable, high quality and high grade.

Aluminum Expanded Metal Mesh has light weight for easy transportation.
Aluminum Expanded Metal Mesh is not easily bent, and suitable for security mesh applications.
Decorative properties for ceiling or room dividers.
Good corrosion resistance for long service life.

SCOPE OF APPLICATION

The aluminum expanded mesh openings formed in fabricating process allow air, sound, light and heat to pass through. The decorative patterns are mainly used for aesthetic purposes such as ceiling, stadium partitions and shelves.

General application of Aluminum expanded metal:
External wall cladding
Sunshade screens.
Building cladding panels.
Balcony&Balustrade
Building curtain wall Mesh
Bird screens.
Partitions / enclosures
Ventilation parts for air conditioners.
Louvers.
Metal cabinet shelves.
Amusement equipment.
Security mesh of doors and windows.

Specification Sheet Width (mm) Sheet Length(mm) Weight
(kg/m2)
Thickness(mm) Opening in Width(mm) Opening in length (mm) Stem(mm)
0.5 2.5 4.5 0.5 0.5 1 1.8

0.5

10 25 0.5 0.6 2 0.73
0.6 10 25 1 0.6 2 1
0.8 10 25 1 0.6 2 1.25
1 10 25 1.1 0.6 2 1.77
1 15 40 1.5 2 4 1.85
1.2 10 25 1.1 2 4 2.21
1.2 15 40 1.5 2 4 2.3
1.5 15 40 1.5 1.8 4 2.77
1.5 23 60 2.6 2 3.6 2.77
2 18 50 2.1 2 4 3.69
2 22 60 2.6 2 4 3.69
3 40 80 3.8 2 4 5.00
4 50 100 4 2 2 11.15
4 60 120 4 2 7.5 4.0
4 80 180 4 2 10 3.0
4 100 200 4 2 12 2.5
4.5 50 100 5 2 2.7 11.15
5 50 100 5 1.4 2.6 12.39
5 75 150 5 2 10 3.0
6 50 100 6 2 2.5 17.35
8 50 100 8 2 2.1 28.26
